DESCRIPTION

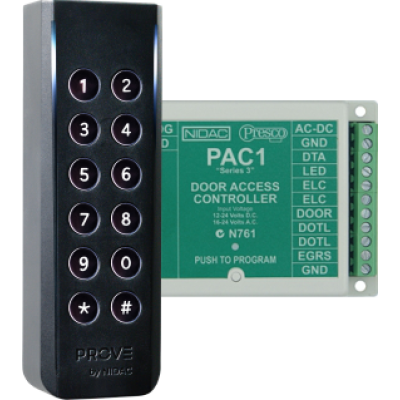

Kit Includes: 1 x Vandal and Weather Proof Keypad and 1 x PAC 1 Single Door Access Controller
PAC1 Single Door Controller
- 12-24 Volt D.C. or 16-24 Volt A.C. operation.
- 600 Users. Controls a single door.
- Split system ensures maximum security.
- Support for bulk entry of users.
- Heavy duty 5 Amp relay contacts for lock control.
- Support for Fail Safe and Fail Secure locking schemes.
- 1 Amp N.O. relay contacts for DOTL and Door Forced alarm outputs.
- Automatic door Re-lock function. Programmable EGRESS input:
- Momentary release for door output.
- Hold release for door output.
- Backward compatibility feature for use with the PACDL Datalogger.
- 10 year data memory retention, non-volatile memory.
- 12 month warranty.
Vandal & weather resistant keypad and card reader
This backlit 2 wire keypad using Presco's power and data up one core system will go 1km from a decoder.
The PSE-SMT is a surface mount block which maybe needed. (sold separately)
- Suitable for indoor/outdoor usage.
- Durable and attractive keypad construction .
- Vandal Resistant.
- Highly Weather Resistant.
- 12 or 24 Volt D.C.
- Compatible with all Nidac Presco decoders.
- Easily surface mounted.
- Two wire operation.
- Operating temperature range of 0oC to 70oC.
-
36 month (3 year) manufacturers warranty.
This is a very basic, high security system. It has no time schedules or other fancy features. You badge a valid card; or enter a valid pin number, and the door unlocks for a preset time, and when the door closes, the door is locked again. The door controller locks and unlocks the electronic lock, so should the card reader be pulled off the door and the wires shorted out, the electronic lock will not unlock.
